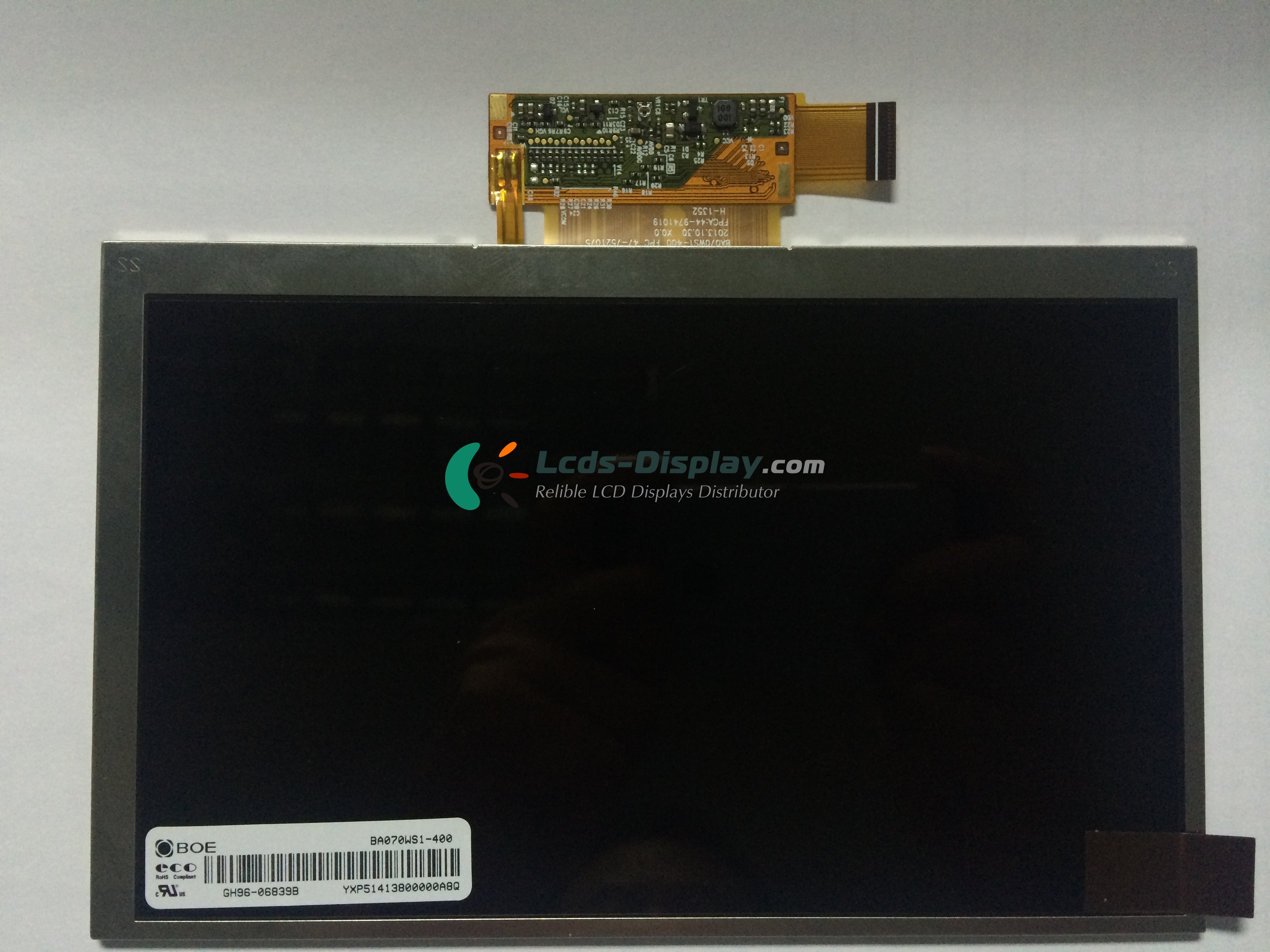

BA070WS1-400
BA070WS1-400 Grundlæggende oplysninger
| Panel Model | BA070WS1-400 |
|---|---|
| Panelmærke | BOE |
| descrition | a-Si TFT-LCD ,7.0 inch, 1024×600 |
| Paneltype | a-Si TFT-LCD |
| BA070WS1-400 pris | Anmodning Pris og leveringstid |
| Driftstemperatur | 0 ~ 50 °C |
| Stuetemperatur | -20 ~ 60 °C |
BA070WS1-400 Mekaniske egenskaber
| Punktopløsning | 1024(RGB)×600 (WSVGA) |
|---|---|
| Pixel-konfiguration | RGB Vertical Stripe |
| Pixel Density | 169 PPI |
| Aspect Ratio | 17:10 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot pitch | 0.050×0.150 mm (H×V) |
| Pixel Pitch | 0.150×0.150 mm (H×V) |
| Vægt | 110g (Typ.) |
| Overflade | Clear, Hard coating |
| Aktivt område | 153.6×90 mm (H×V) |
| Bezel Area | 157.2×93.6 mm (H×V) |
| Skitse Dimension | 167.25×104.65 mm (H×V) |
| Skitse dybde | 2.8±0.2 mm |
| Holes & Brackets | Without |
| Landskab eller Portræt | Landscape type |
| Berøringspanel | Without |
BA070WS1-400 Optiske funktioner
| Visningstilstand | TN, Normally White, Transmissive |
|---|---|
| lysstyrke | 350 cd/m² (Typ.) |
| Kontrastforhold | 700 : 1 (Typ.) (Transmissive) |
| Skærmfarve | 262K/16.7M (6-bit / 6-bit + Hi-FRC) |
| Color Gamut | 50% NTSC (CIE1931) |
| Responstid | 20 (Typ.)(Tr+Td) |
| Synsvinkel | 70/70/70/60 (Typ.)(CR≥10) (L/R/U/D) |
| Hvid farve Kromaticitet | Wx:0.313; Wy:0.329 |
| Hvid Variation | 1.25/1.67 (Max.)(5/13 points) |
| Sollys Læses | N |
BA070WS1-400 Elektronik Feature
| Lodret frekvens | 60Hz |
|---|---|
| Omvendt scanning | Yes (U/D, L/R) |
| Total strømforbrug | 1.6W (Max.) |
BA070WS1-400 Backlight System
| Lampens position | Edge light type |
|---|---|
| Lampetype | WLED |
| Lampe Beløb | 3S6P |
| Lampeform | Array |
| Lampens levetid | 10K(Min.) (Hours) |
| Lampespænding | 9.9V (Max.) |
| Lampestrøm | 120mA (Typ.) |
| Lamper Strømforbrug | 1.2W (Max.) |
| Interface Type | Included in panel signal interface |
| Lamp Driver Board | No |
BA070WS1-400 Signal Interface
| Signalkategori | LVDS |
|---|---|
| Signalklasse | LVDS (1 ch, 6/8-bit) |
| Indgangsspænding til panel | 3.3V (Typ.) |
| Indgangsstrøm for panel | 120mA (Typ.) |
| Panel Strømforbrug | 0.4/0.5W (Typ./Max.) |
| Interface Type | FPC |
